Nukeproof Horizon V2 Freehub Body 102t

The Nukeproof Horizon V2 Freehub Body 102t is specifically designed for replacing the freehub body on Nukeproof Horizon V2 hubs.

This freehub body features a tough alloy construction, which makes it perfect for replacing your old or worn-out existing model. Suitable for use only on Nukeproof Horizon V2 hubs, this freehub body is designed for quick and easy installation.

Options:

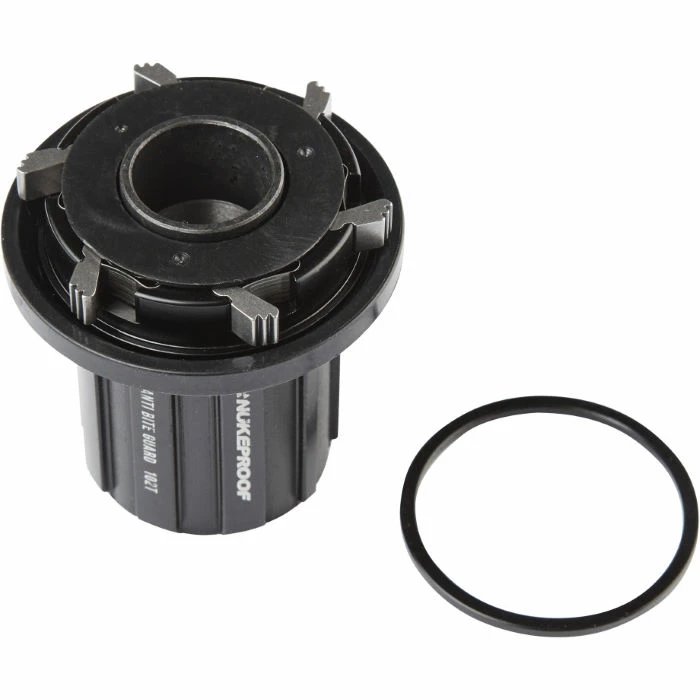

·         Shimano HG

·         Shimano Microspline

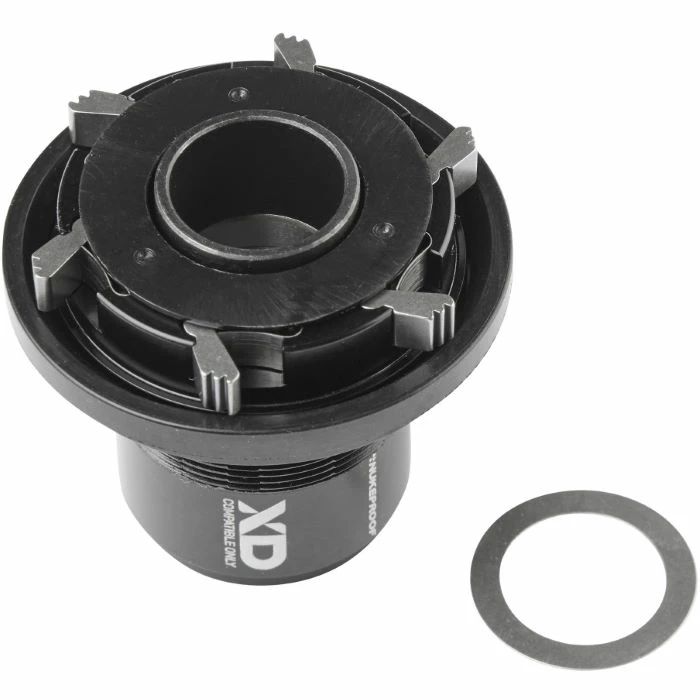

·         SRAM XD

A new hub seal and bushing is supplied with Nukeproof freehubs.

Please Note: The new hub seal will be fitted to the freehub for transport purposes. This needs to be removed from the freehub by pressing the pawls BEFORE fitting the freehub.

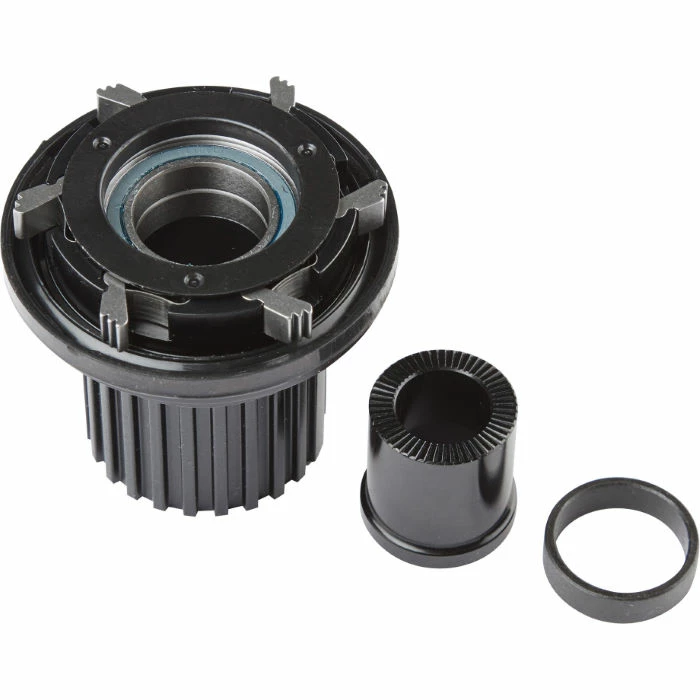

Microspline freehubs also include the driveside end cap so you can easily convert an HG / XD hub to microspline

If you are converting a microspline hub to XD or HG, you will also require a new driveside end cap which can be bought here ( )

This freehub is only compatible with Nukeproof Horizon V2 hubs.

For step-by-step fitting instructions click here.

Freehubs:
Installation Instructions:

1. Remove driveside end cap

2. Pull off old freehub turning anticlockwise as you pull

3. Check hub seal for damage, if it is damaged remove the seal

4. If seal was removed, press on new seal

5. Apply grease hub ratchet ring

6. Apply thin grease to freehub pawls & springs then push onto hub shell turning anticlockwise

7. Refit driveside end cap

Topfunktioner:

• Material: Alloy
• Pawl: 6-Pawl
• Hub Compatibility: Horizon V2
• Cassette Compatibility: Shimano HG – 9, 10, 11 and 12 Shimano HG spline cassettes; SRAM XD – SRAM Eagle XD Cassettes; Shimano Microspline – Shimano microspline cassettes
• Points of Engagement: 102
• Nukeproof Part Numbers: Shimano HG Freehub: NUKHORV2102TFHHG; SRAM XD Freehub: NUKHORV2102TFHXD; Shimano Microspline Freehub: NUKHORV2102TFHMS
